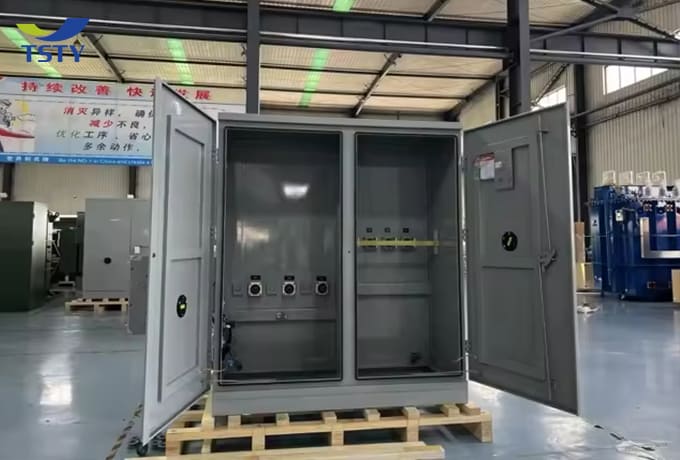

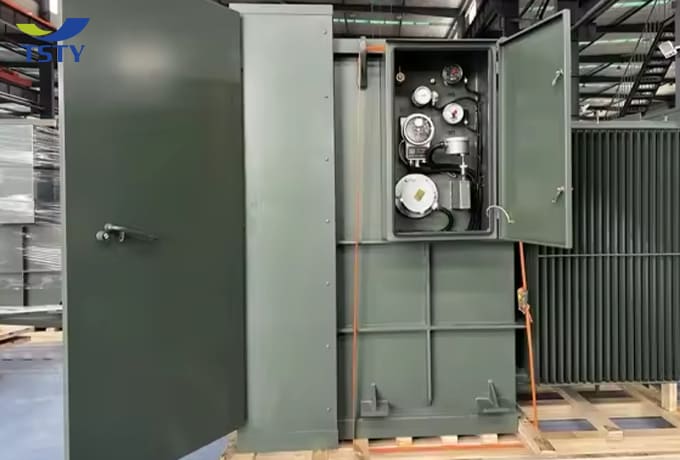

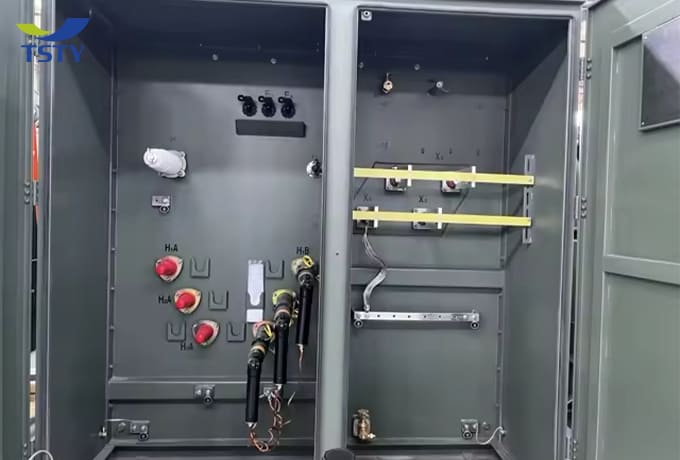

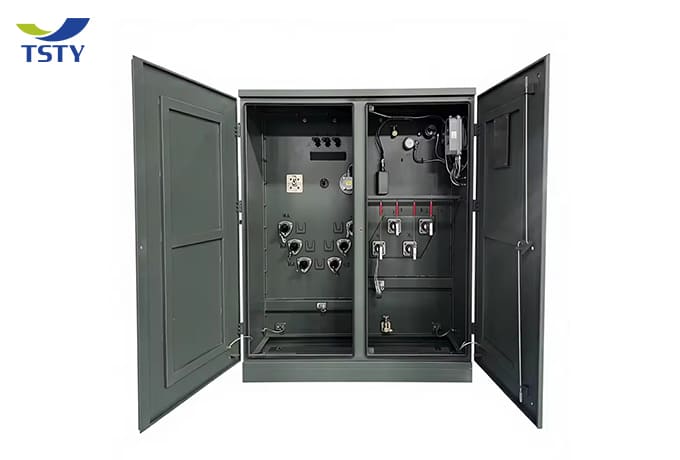

UL CUL Three Phase Pad Mounted Transformer

Three-phase pad-mounted transformers offer a wide range of options, convenient installation, high efficiency, tamper-proof construction, low maintenance costs, and enhanced security. They feature various customizable designs to meet specific end-user needs. They are widely used in intelligent power transmission and distribution fields such as substations, outdoor overhead lines, buried transformers, and switchgear, as well as in railway, solar, and wind power applications.

Capacity range:75-5000kva

Primary Voltage Ratings : 34.5kv-19.92kv/13.8kv-7.957kv/13.2kv-7.62kv/12.47kv-7.2 kv or others

Secondary Voltage Ratings:208GrdY/120;416GrdY/240,480GrdY/277,600GrdY/347,220v/127.480V/415V,600V or others

H.V.TAP RANGE : +2x2.5% or others

CONNECTION TYPE : Dynl1/YNyn0 or others

TYPE : Loop feed/Radial feed

High-quality construction: Compliant with ANSI, CE, and UL standards, ensuring reliability.

Three-phase design: Suitable for industrial and commercial applications.

Layer-wound coils: Enhance insulation and reduce heat generation.

This transformer features a core constructed using advanced technology from laminated cold-rolled silicon steel sheets. It boasts extremely high efficiency and low heat generation, resulting in lower cooling requirements. The unit uses mineral oil as the insulating fluid, achieving a temperature rise of up to 65°C. With its NEMA 3R protection-rated enclosure, this floor-mounted unit can be used for indoor or outdoor applications. This transformer is primarily used for power distribution, primary voltage reduction, energy management systems, and underground industrial power distribution.

This pad-mounted transformer meets current energy efficiency standards in the United States and Canada. It offers users significant energy savings and environmental benefits. Higher efficiency extends the transformer's lifespan and results in substantial cost savings through reduced energy bills and lower ownership costs.
