UL Single Phase Pad Mounted Transformer

The single-phase Pad Mounted Transformer is a compact and efficient power distribution solution suitable for residential areas, commercial outlets, rural electrification, and distributed power access. We offer a wide range from 15 kVA to 250 kVA, flexibly addressing power demands ranging from single-family homes to small commercial complexes.

• Rated Power: Covers a wide range from 15 kVA to 250 kVA
• Voltage Rating: High-voltage side up to 34.5 kV, low-voltage side up to 480/240 V
• Insulation and Coolant: Uses mineral oil as coolant, ensuring efficient operation even under harsh conditions.
• Certifications and Standards: UL/cUL certified, meets North American safety standards.

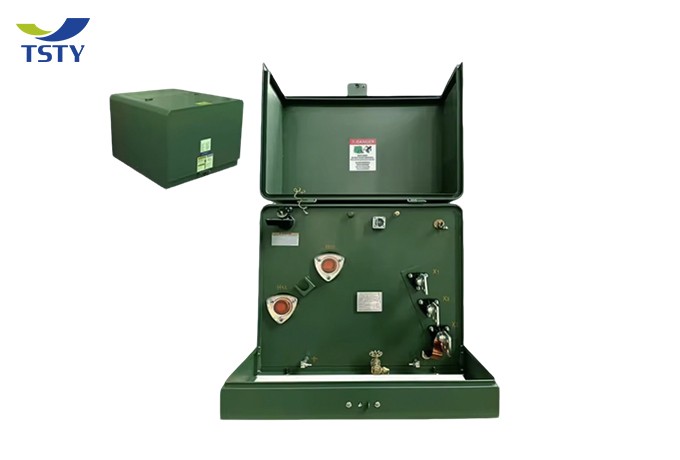

The single-phase Pad Mounted Transformer adopts a modular compartmentalized layout, balancing electrical safety, ease of operation and maintenance, and space utilization, and is suitable for long-term stable operation under complex outdoor conditions. It consists of an oil tank, which contains high-voltage and low-voltage cable terminal compartments, cleverly arranged side by side on one side of the transformer oil tank.

To simplify installation, inspection, and maintenance processes, our pad-mounted transformers incorporate several innovative designs:

Removable Flip-Top Cover:

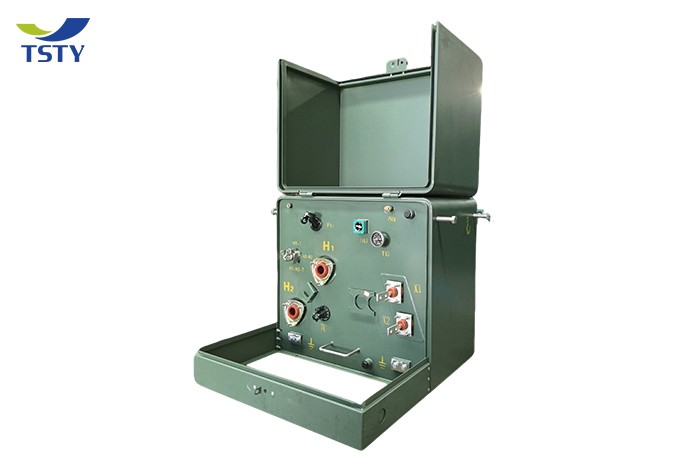

The cover opens fully 180°, providing unobstructed top visibility and operating space.

Using stainless steel hinge pins, it is robust, durable, and corrosion-resistant, ensuring smooth opening and closing even after years of use.

This design greatly facilitates internal wiring inspection, bushing maintenance, and troubleshooting.

Flexible Network Connectivity:

Equipped with external clamping high-voltage bushing wells, it supports both loop and radial feeding as mainstream wiring methods.

This design enhances the flexibility and reliability of grid connections, facilitating the expansion and reconfiguration of distribution networks.
