ZGS combined transformer

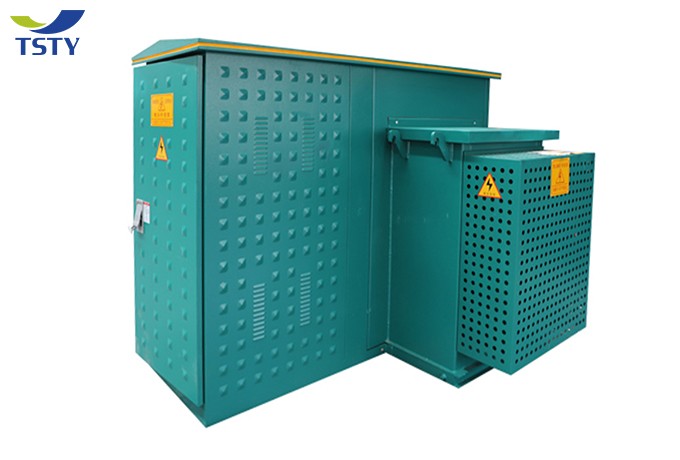

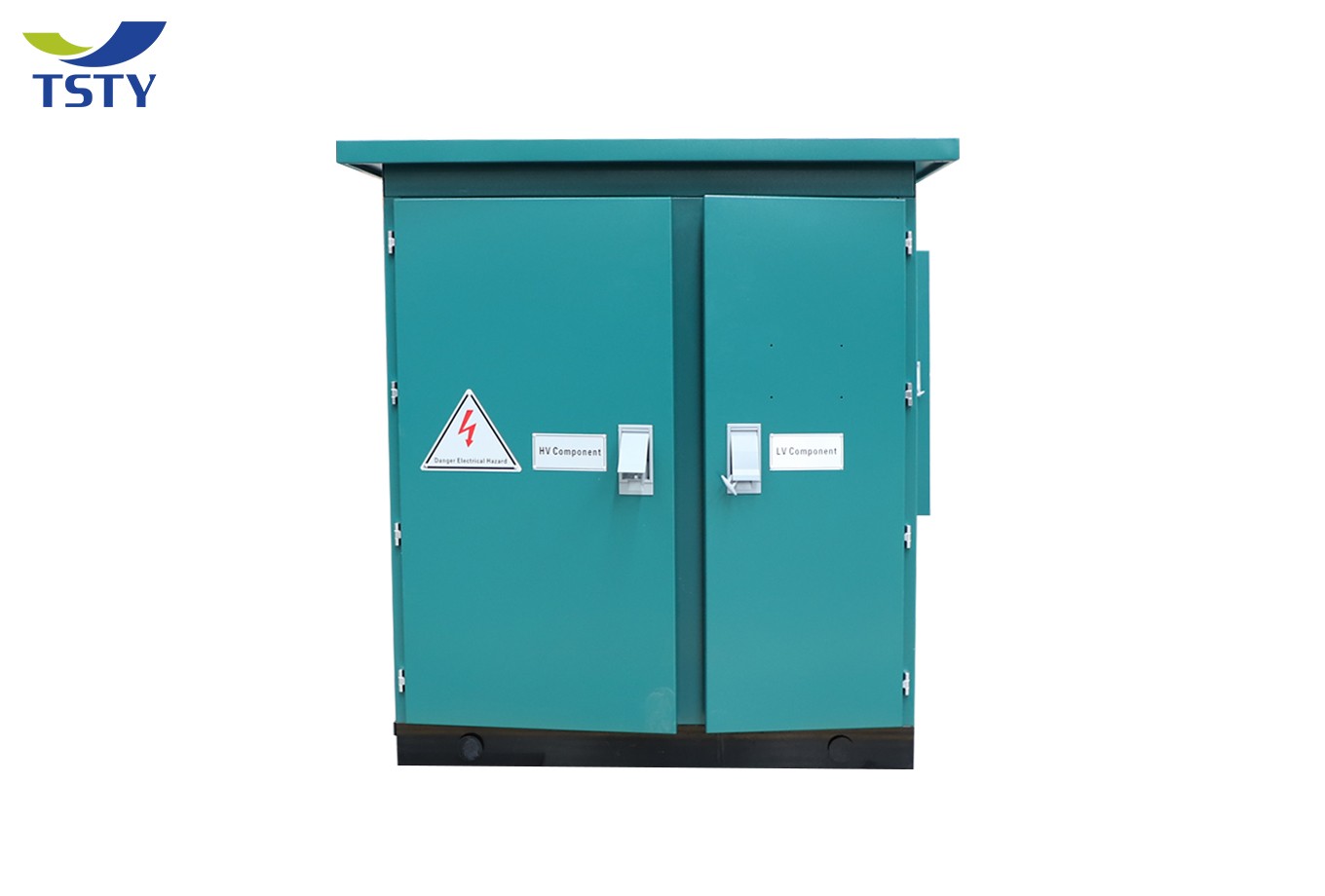

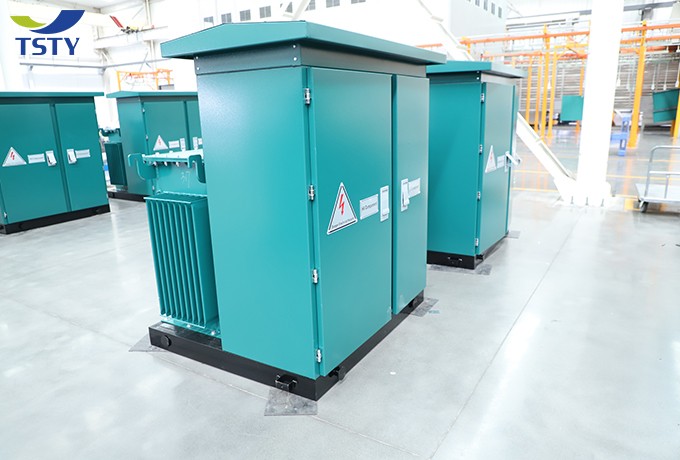

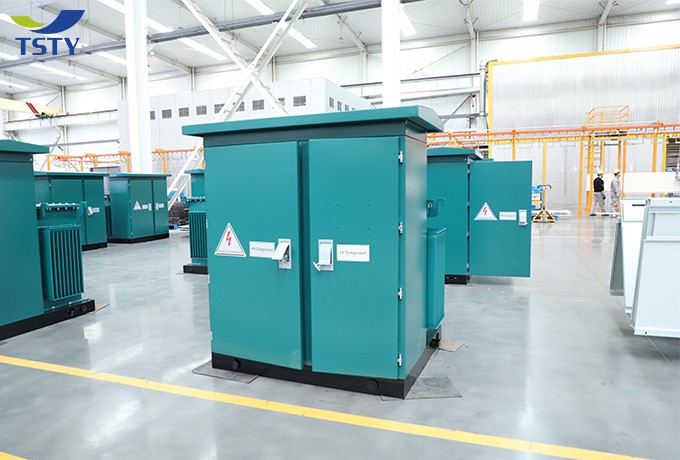

ZGS combined transformer(Pad Mounted Transformer), the volume is smaller, more suitable for use in a small area, the main structure is the high pressure side with a plug-in fuse, low pressure according to customer demand there are several lines. This makes the price of the United States will be a little cheaper than the box. We can customize the design according to the customer's site situation.

TSTY Electric Co., Ltd.

Parameter Table

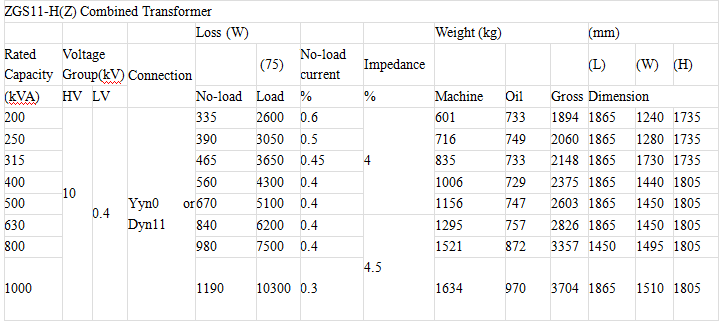

ZGS11-H(Z) Combined Transformer
				Loss(W)				Weight (kg)			(mm)
Rated Voltage	Capacity Group(KV)		Connection		(75)	No-load current	Impedance				(L)	(W)	(H)
(kVA)	HV	LV	Yyn0 Dyn11	No-load	Load	%	%	Machine	Oil	Gross	Dimension
200	10	0.4		335	2600	0.6	4	601	733	1894	1865	1240	1735
250				390	3050	0.5		716	749	2060	1865	1280	1735
315				465	3650	0.45		835	733	2148	1865	1730	1735
400				560	4300	0.4		1006	729	2375	1S65	1440	1805
500				or670	5100	0.4		1156	747	2603	1865	1450	1805
630				840	6200	0.4	4.5	1295	757	2826	1865	1450	1805
800				980	7500	0.4		1521	872	3357	1450	1495	1805
1000				1190	10300	0.3		1634	970	3704	1865	1510	1805

ZGS Advantage

Small size: The transformer body, high-voltage load switch, fuse and other components are placed together in the compartment, which greatly reduces the size of the components, makes the structure more compact, occupies a small area, is easy to place, and is easy to coordinate with the environment such as the community.

Easy installation: The overall structural design makes the installation process flexible and convenient. It can be customized and configured according to different power systems and needs, and can be quickly installed and put into use.

Low cost: It can shorten the length of low-voltage cables, reduce line losses, and reduce the cost of power supply equipment.
