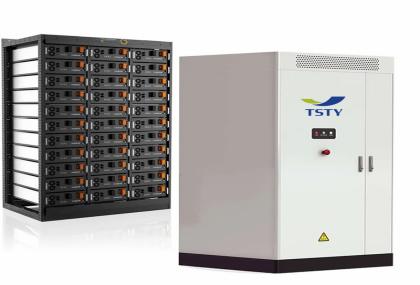

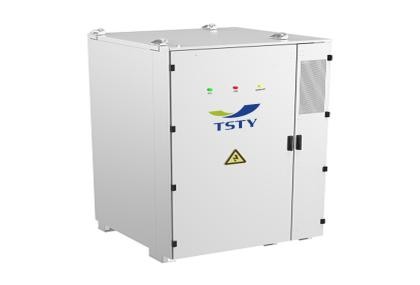

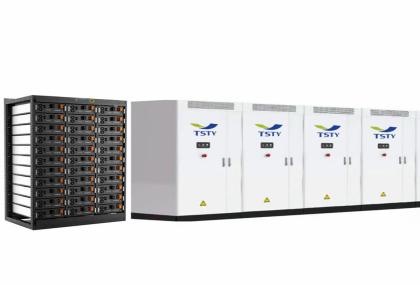

215kWh liquid-cooled energy storage cabinets
Applicable area and User Characteristics
Industrial parks, smart parks, and other electricity-intensive users, with independent transformers, regions with significant price differences between peak and off-peak electricity, and regions with significant daily fluctuations in load curves.
Bring value to enterprises.
1. Peak-Valley Arbitrage: Save electricity and money.
2. Demand Response: Get economic compensation.
3. Capacity Management: Reduce demand-based electricity prices.
4. Dynamic Expansion: Reduce transformer costs.
5. Backup Power during power rationing.
Product Advantages:
- High Safety: Individual cluster management, no circulating current, segmented DC short-circuit current, modular design for easy maintenance and upgrades.
- High Energy Efficiency: Maintains 70% efficiency after 10 years (two charges and two discharges).
- Long Lifespan: Designed for a 15-year operational lifespan under standard conditions.
- Easy Configuration: Can add parallel machines at any time, integrated transportation, easy installation, flexible site layout.
|
Product Name |
TSTY-215KWh |
|
|
DC Side Parameter |
Battery Cell type |
LFP/150Ah |
|
Grouping Configuration |
2P224s |
|
|
Battery Pack Configuration |
2P28S |
|
|
System Battery Voltage Range |
650-806.4V |
|
|
DC Protection |
160A |
|
|
|
Rated AC Power |
100KW |
|
AC Side Parameter |
Max AC Power |
125KW |
|
Current Distortion Rate |
<1%(Resistance load) |
|
|
Rated Grid Voltage |
380AC |
|
|
Rated Grid Frequency |
50Hz |
|
|
|
Ddjustable Power Factor Range |
(-1)~1 |
|
|
Grid Type |
Low voltage side |
|
Basic Parameter |
Battery Cabinet Size(W*D*H) |
1325x1306x2315mm |
|
Battery Cabinet Weight |
≈2500KG |
|
|
Max System Efficiency |
≥90% |
|
|
Charge-Discharge Ratio |
0.5C |
|
|
Cooling Type |
Liquid Cooling System |
|
|
PACK Protection Grade |
IP67 |
|
|
Overall Protection Grade |
IP54 |
|
|
Cycle Count |
6000~8000 times |
|
|
Operating Temperature Range |
Charge:0~50℃，Discharge:-20~50℃ |
|
|
Relative Humidity |
65%±20%RH |
|
|
Cooling Input Power |
8KW |
|
|
Max Working Altitude |
≤2000m |
|
|
Noise |
≤70dB |
|
|
Communication Interface |
RS485 Etherent |
|
|
|
Charge-discharge Switching Time |
<20ms |
|
Fire Protection System |
class B |
|
|
anti-backflow |
Support(opention) |
|
|
on/off-grid |
Support(opention) |
|
