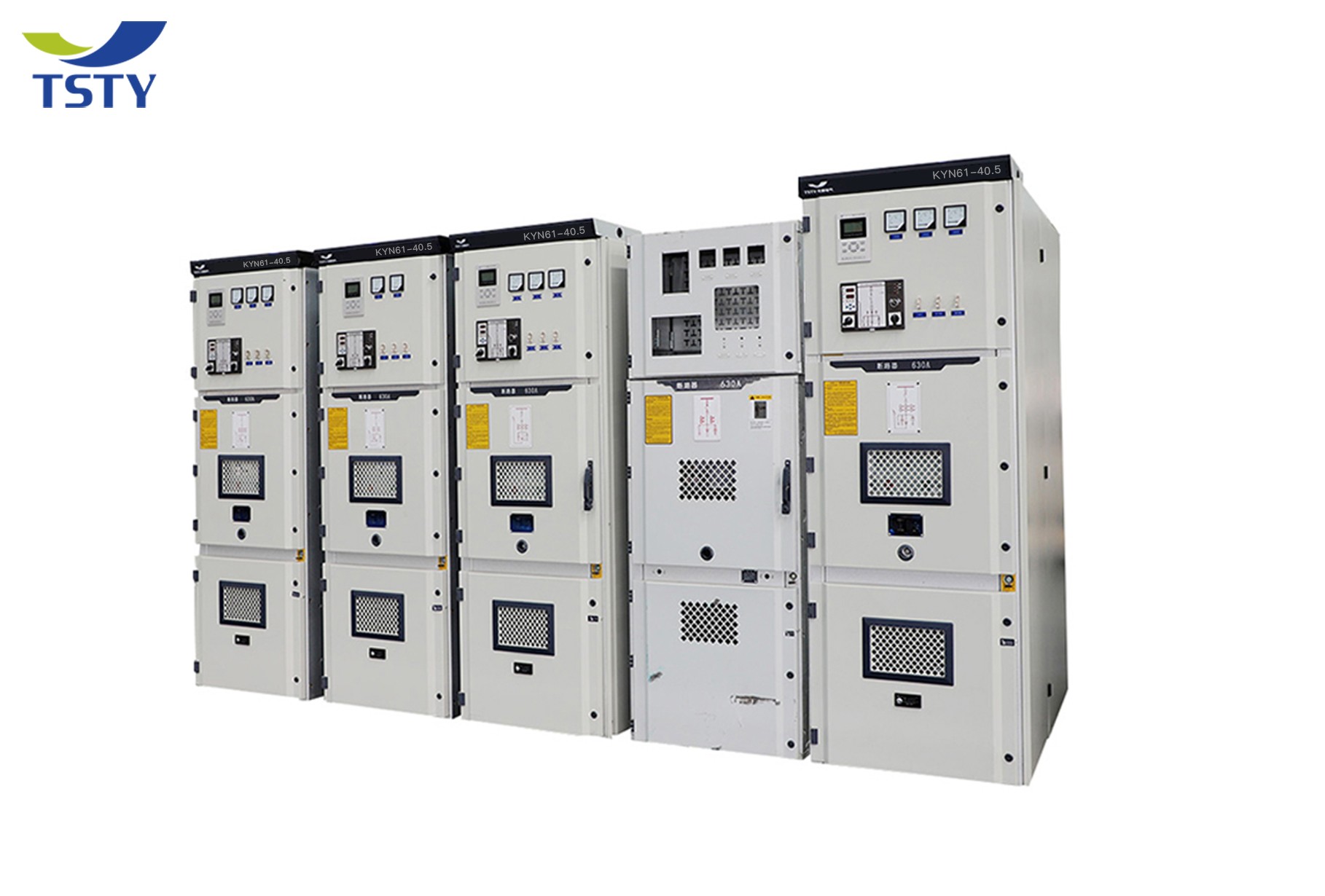

KYN61-40.5(Z) Metalclad AC Enclosed Switchgear, Withdrawable Type

Brand Name: TSTY

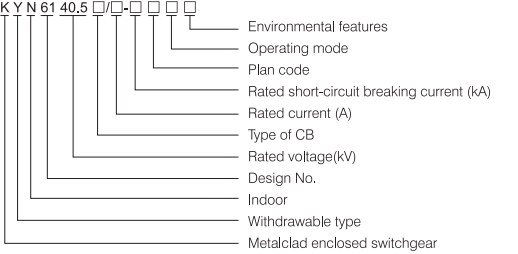

Modle Number: KYN61-40.5(Z)

KYN61-40.5 is a high-voltage switchgear with a rated voltage of 40.5kV. The product complies with the IEC62271-200 standard. It is widely used in power distribution, control and protection of power systems, and is suitable for medium and high voltage power distribution scenarios such as substations, industrial and mining enterprises, and new energy power generation.TSTY Electric Co., Ltd.

     KYN61-40.5 Parameters

Switchgear Panel Parameters
Item Unit Data
Rated voltage kV 40.5
Rated current Rated current of main bus bar A 1250.1600.2000.(2500)
Rated current of matched VCB A 1250.1600,2000.(2500)
1 min power frequency withstand voltage KV 95
 Lightning withstand voltage kV 185
Power frequency withstands voltage of auxiliary circuit and control circuit  V/1 min  2000
Rated frequency   Hz 50
Rated short-circuit breaking current   kA 20 25 31.5
Rated short-time withstand current/ Rated short-circuit cordinuous time   kAMs 20 25 31.5
Rated withstands current (peak)   kA 50 63 80*
Rated short-circuit making currem   kA 50 63 80*
Rated voltage of control circuit   V DC: 110 220
 AC: 110 220
Production level    Switchgear shell   IP3X
Compartments (door opened)   IP2X
VCB Parameter
Item Unit Data
Rated voltage   kV 40.5
Rated current   A 1250,1600,2000,(2500)
Rated frequency Hz 50
Rated short-time breaking current kA 20 25 31.5
Rated short-circuit making curre kA 50 63 80
Rated peak withstand currenl kA 50 63 80
Rated short-time qithstand current/Rated short-circuit continuous time kA/4s 20 25 31.5
Rated insulation level  1 min power frequency withstand voltage (rms) kV 95
 Thun dering withsta nd voltage(rms) kV 185
Power frequency withstand voltage of auxiliary circuit and control circuit V/1 min 2000
Mechanical life   Times 10000
Making time Electromagnetic mechanism s ≤0.2
Spring mechanism s ≤0.15
Breaking time s ≤0.07
Rated operation sequenee   ope-0.3s-close open-180s-close
Product Features:
1. The German-imported spray coating system utilizes an electrostatic spray gun and water-based environmentally friendly paint, resulting in a coating uniformity error of ≤5μm and an 80% reduction in VOC emissions. This simultaneously achieves a "zero-defect appearance" and green manufacturing, with a spray defect rate of less than 0.3%.
2. The cabinet structure features a center-mount design, offering a compact form factor, excellent interchangeability, and ample cable compartment space for easy installation and maintenance.
3. Equipped with advanced Schneider vacuum circuit breakers or high-quality domestic vacuum circuit breakers, the system offers superior performance.
4. The enclosure has an IP4X protection rating, maintaining IP2X even when the circuit breaker compartment door is opened.
5. The product features comprehensive "five-protection" interlocking functions to ensure operator safety.
6. The main busbar current rating is 4000A, the short-circuit breaking current is 50kA, and the mechanical life is 20,000 cycles.

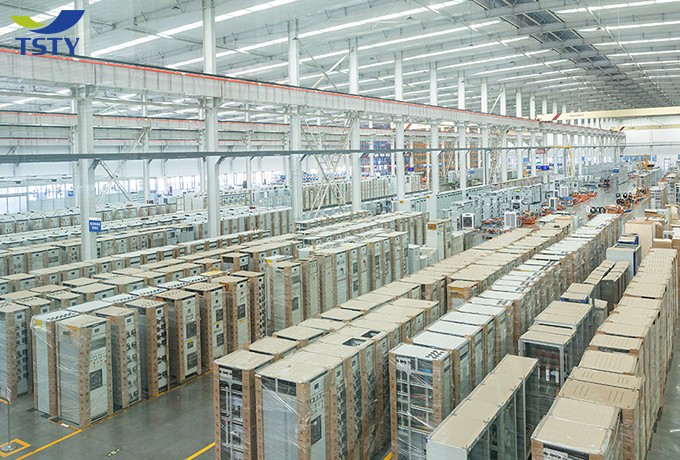

     Intelligent Logistics System

TSTY Electric Co., Ltd.

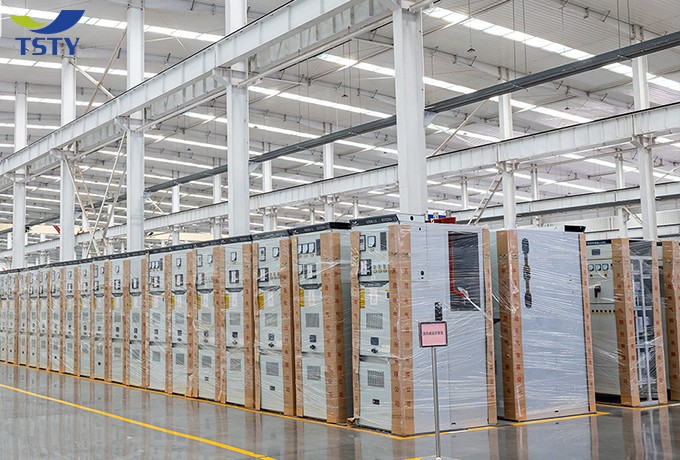

Three-dimensional warehousing system

 Three-dimensional warehousing system: 20-meter high-bay warehouse, storage density increased by 300%; WMS intelligent       scheduling, inventory turnover rate increased by 50%.





TSTY Electric Co., Ltd.







Unmanned distribution network

  AGV+unmanned forklift cluster, handling efficiency reaches 120 pallets/hour

     Full-Scenario Verification

1.Use cabinet-joint test to simulate real working conditions, perform load simulation, emergency operation verification (opening and closing response time ≤ 20ms), and multi-device linkage test (protection device/transformer coordination error < 1%).

2. Triple performance verification: pass 72-hour full-load temperature rise test; mechanical life test ≥ 10,000 times; comply with IEC 62271-200 standard.

TSTY Electric Co., Ltd.     About TSTY

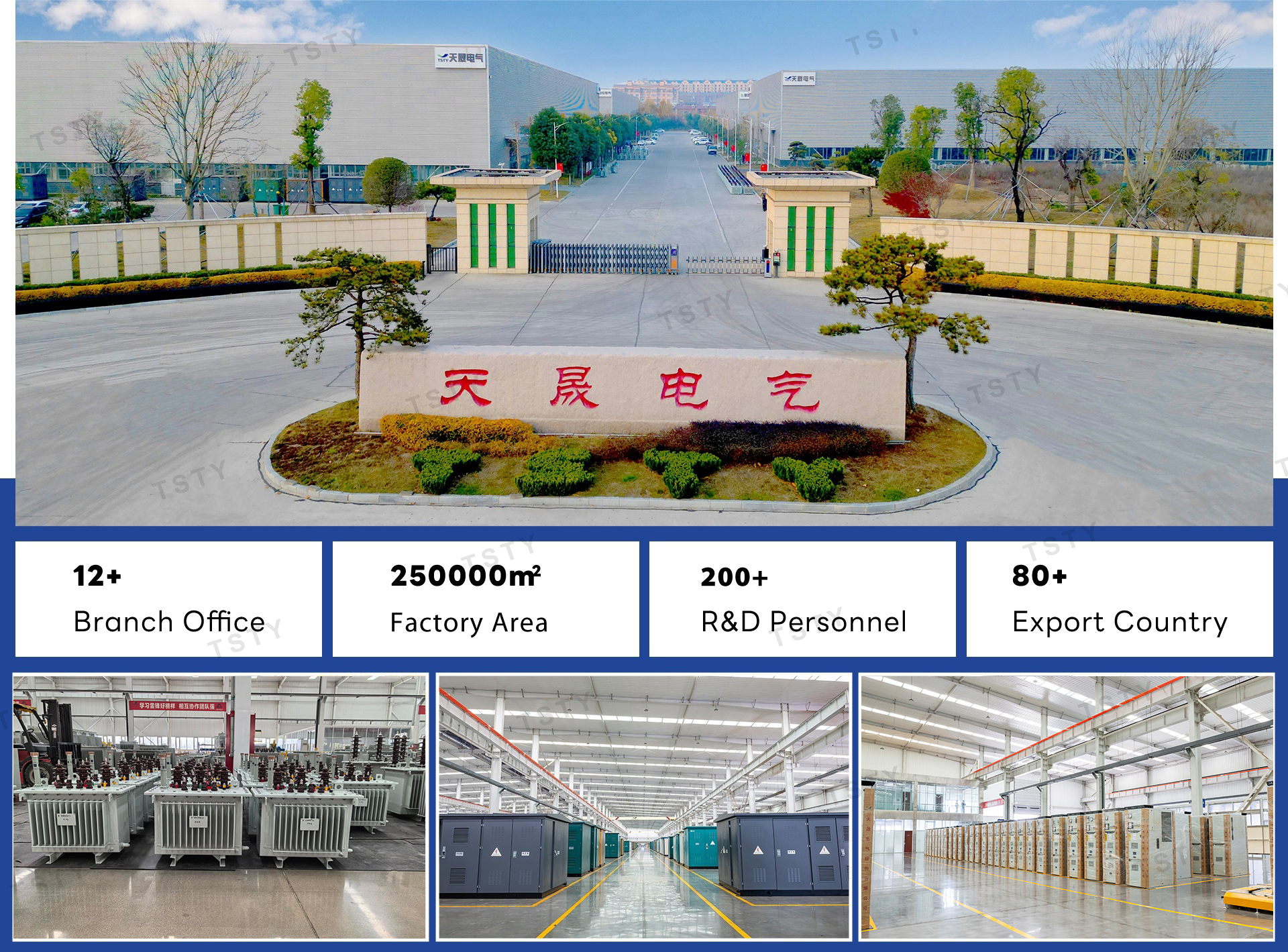

TSTY Electric Co., Ltd is a national high-tech enterprise with a history of more than 30 years, focusing on the intelligent manufacturing of power transmission and distribution equipment. It mainly deals in oil-immersed, dry-type transformers, box-type substations, high and low voltage switchgear and have obtained ISO 9001, CCC, CE, IEC, GOST and other certifications, 158 patents, and are exported to more than 80 countries.  Factory scale: 250,000 square meters of park, 15 production lines (including 3 intelligent lines), equipped with 220+ intelligent equipment.  Production capacity efficiency: annual output value of 1.5 billion yuan, product qualification rate> 99.8%.
