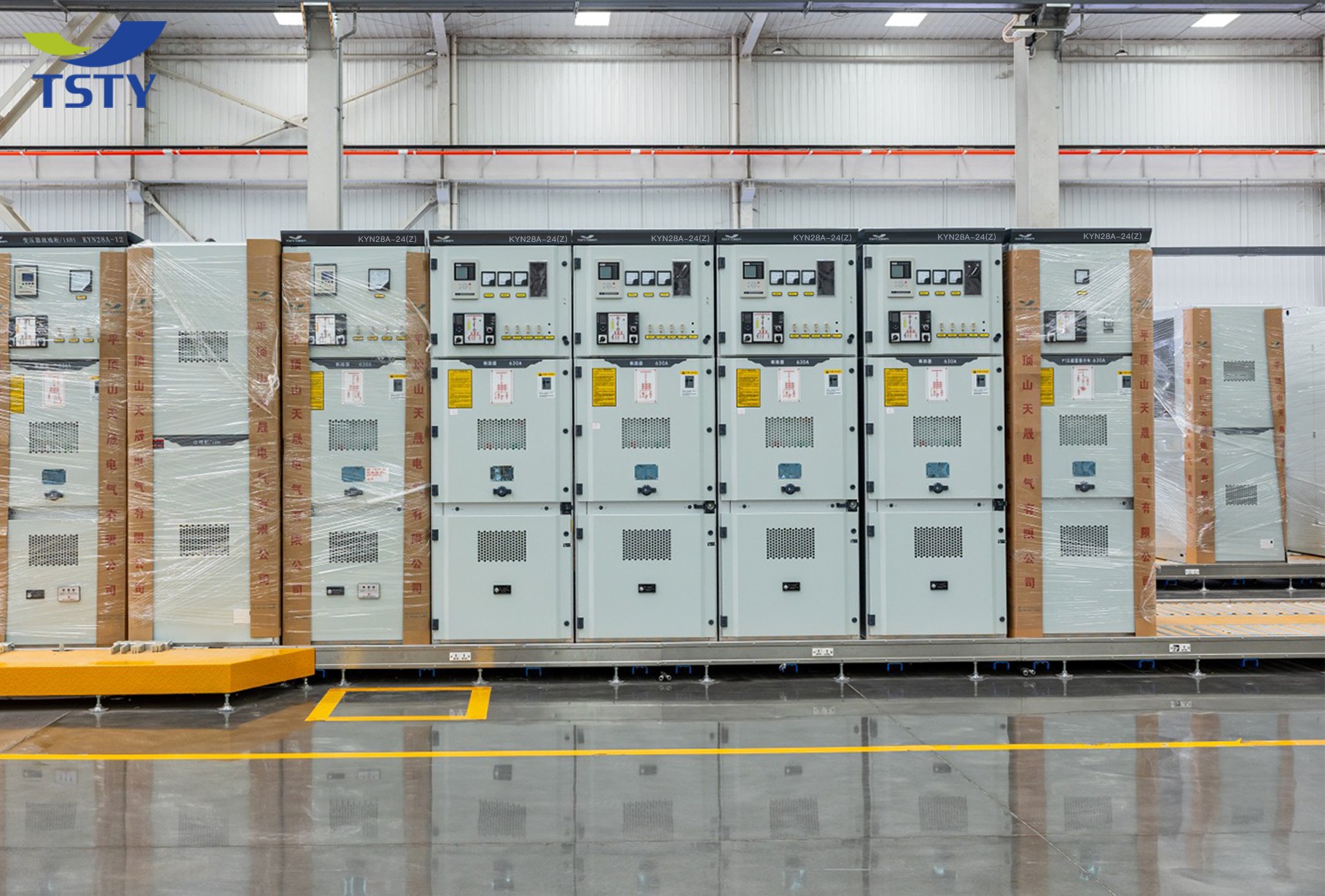

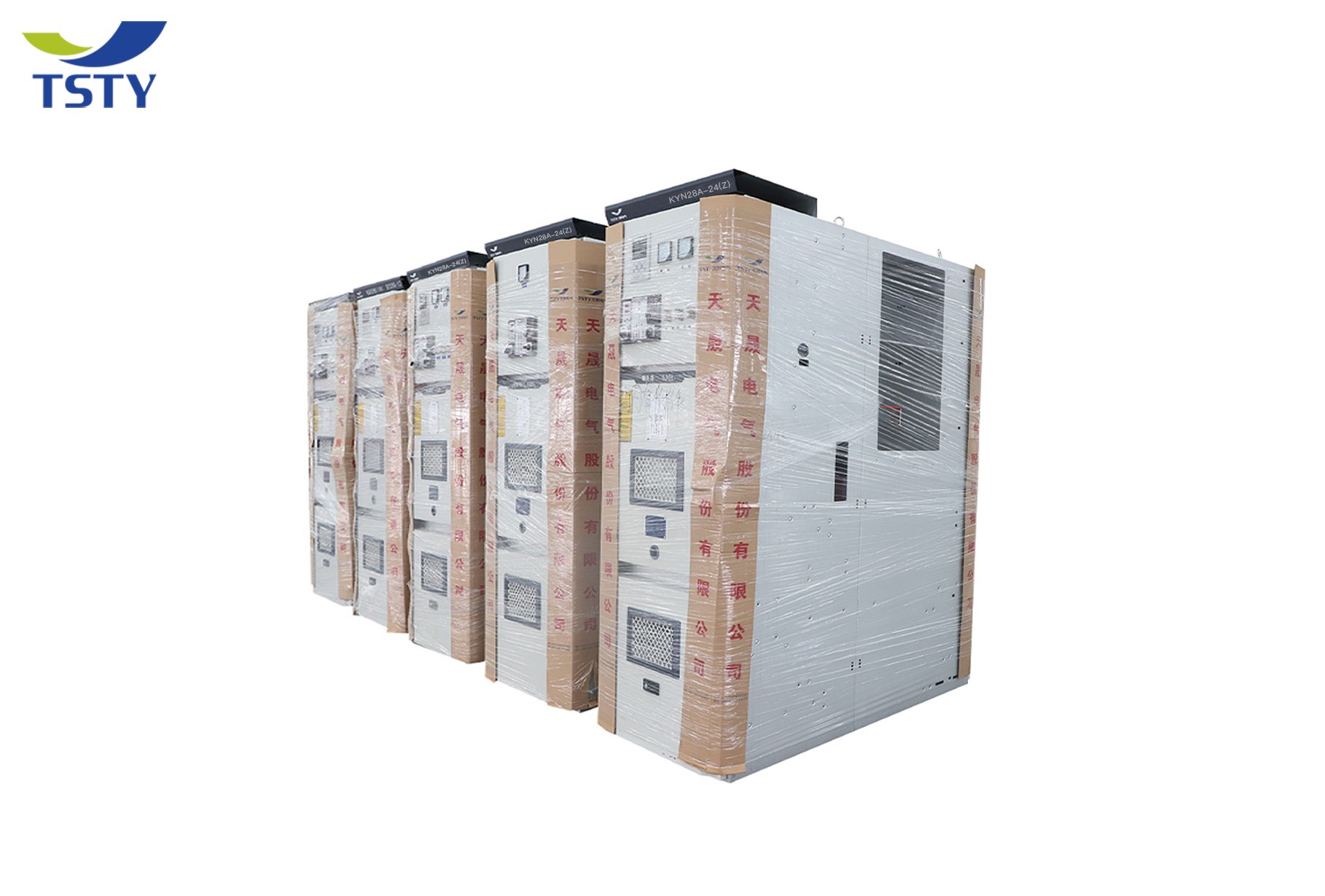

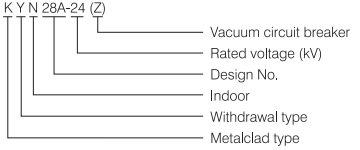

KYN28A-24 (Z) Metaldad Swilchgear Panel, Withdrawable type

Brand Name: TSTY

Modle Mumber: KYN28-24kv

KYN28A-24 is a relatively common high-voltage switchgear at present, rated voltage is 24kV,rated current up to 1250A, AC 50/60Hz. The equipped vacuum circuit breaker is in the middle of the switch cabinet, that is, the circuit breaker is located in the middle of the front cabinet of the switchgear, so the lower space can be saved for the expansion of other schemes or used as a cable room.

Application Channels:

Mainly used in power plants, substations, transformation and distribution centers of industrial and mining enterprises, and large-scale high-voltage motor starting equipment, etc., for receiving and distributing electric energy, and for controlling, protecting and monitoring circuits.

TSTY Electric Co., Ltd.



     Technical Parameters

Item

Unit

Data

CB fitted

NV1-24

Rated voltage

kV

24

1 min power frequency withstand voltage

kV

(50)65

Rated impulse withstand voltage (peak)

kV

125

Rated frequency

Hz

50(60)

Rated current

A

630 1250 1600 2000 2500 3150

Rated current of branch bus

A

630 1250 1600 2000 2500

Rated short time withstand currenl

kA

16 20 25 31.5

Rated peak withstand current

kA

40 50 63 80

Rated short circuit continuous time

s

4

Protection level



Shell: IP4X. IP2X when CPT and CB door are open

Weight

kg

800,1000(rated current >1600A)

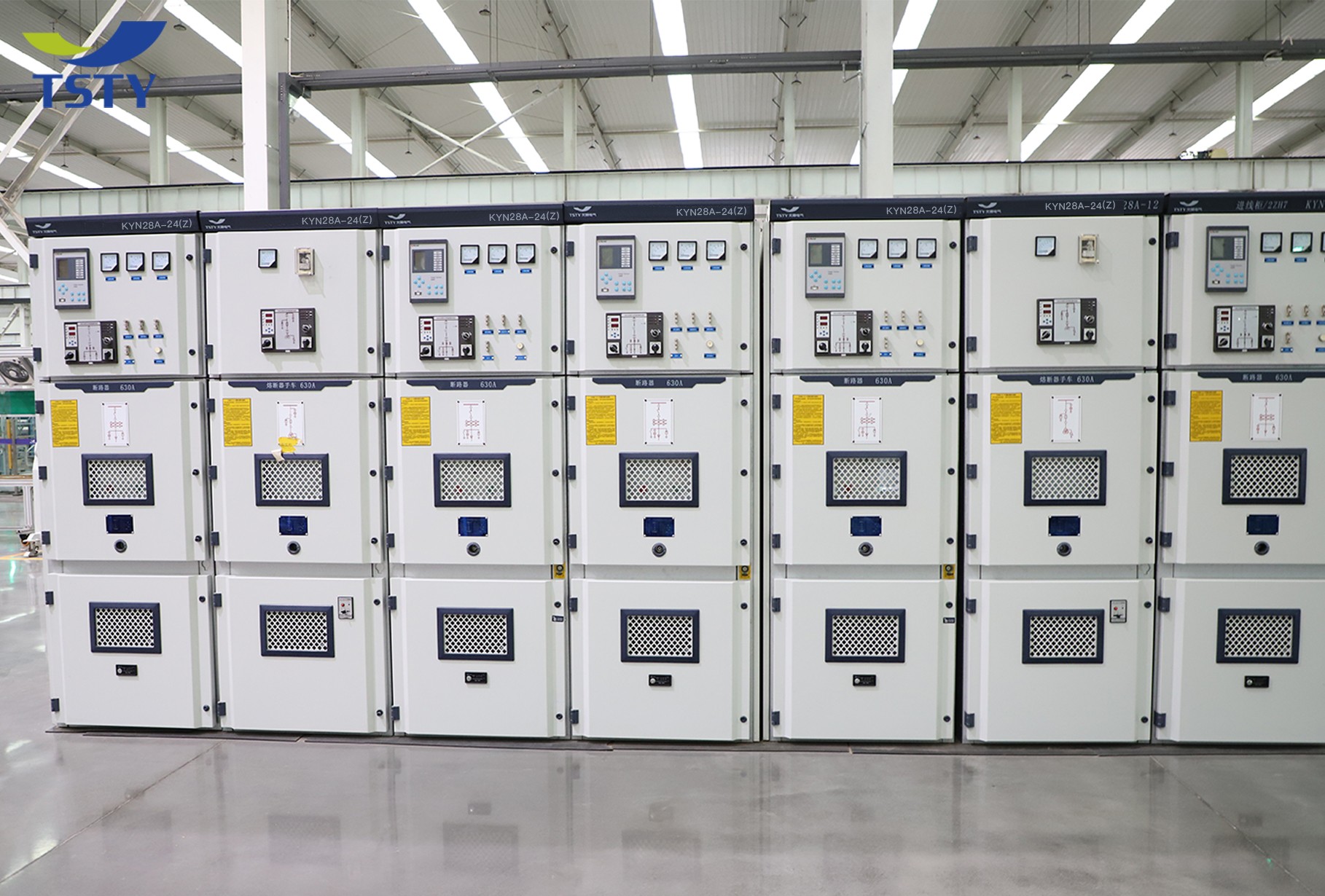

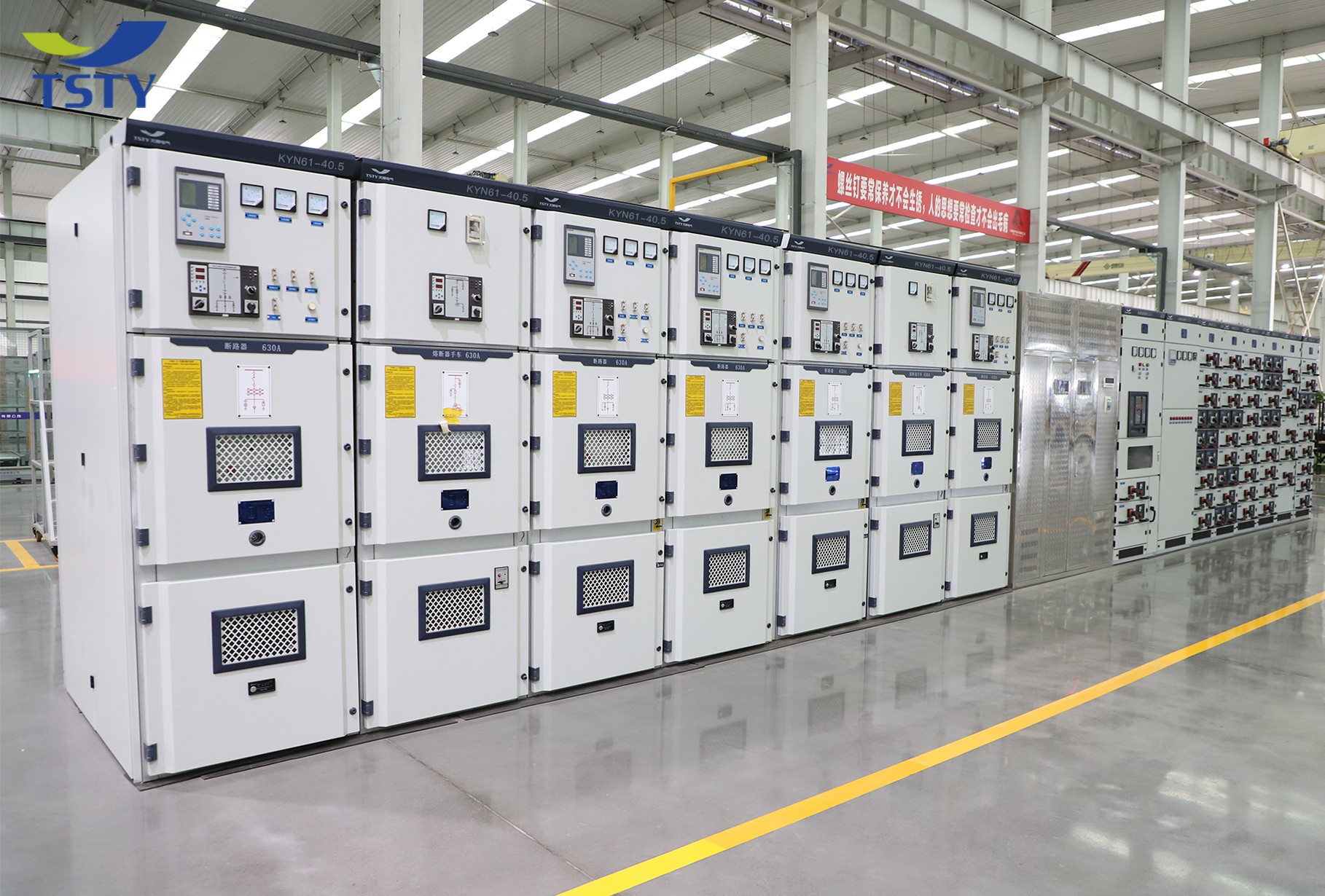

     KYN28A-24 Structural Features

1. Cabinet structure

Fully enclosed metal armored design, divided into four independent compartments: circuit breaker room, busbar room, cable room, relay instrument room, each compartment has a metal partition, high safety.

The circuit breaker adopts a central trolley structure, which can be easily pulled out for maintenance or replacement, reducing power outage time.

2. Core components

Vacuum circuit breaker: strong arc extinguishing ability, long life, environmental protection and pollution-free.

Microcomputer protection device: intelligent monitoring and protection functions, support remote operation and communication.

Five-protection interlocking mechanism: ensure safe operation and prevent misoperation.
