Brand Name: TSTY
Model Number: S9-S22
Phase: Three
Service Voltage: 33kv\35kV
Rated Capacity: 15-31500kVA

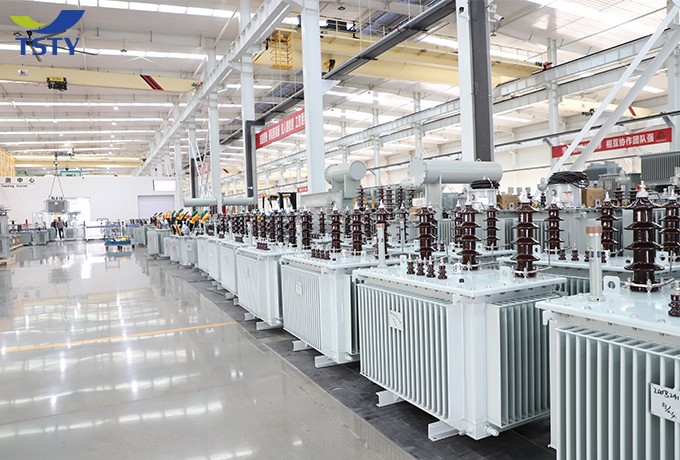

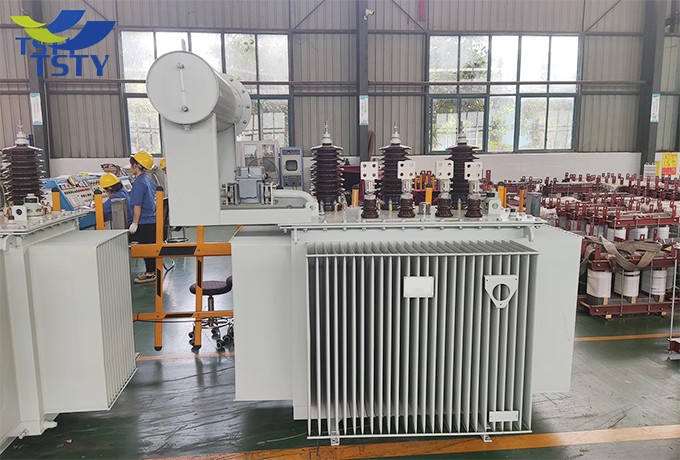

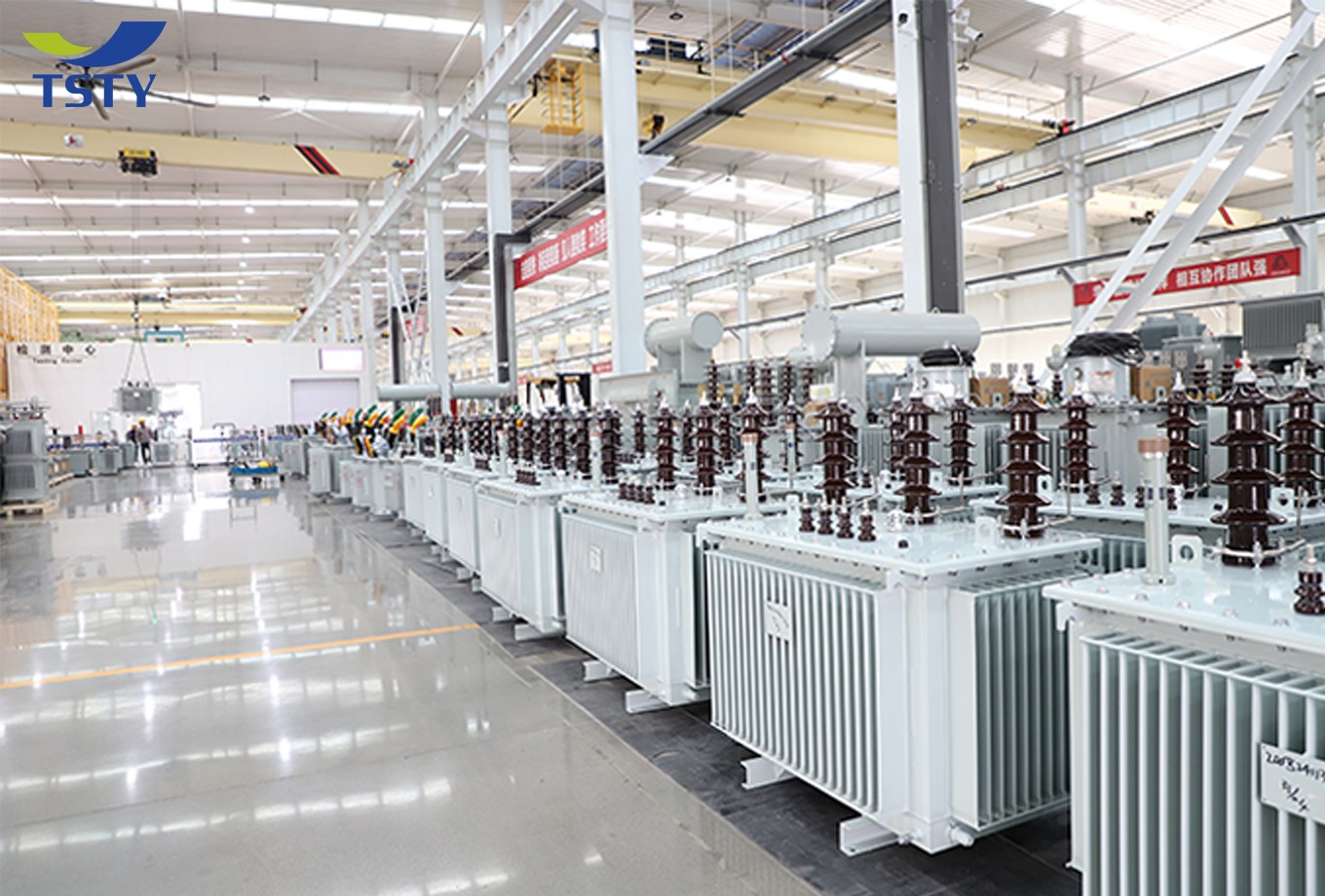

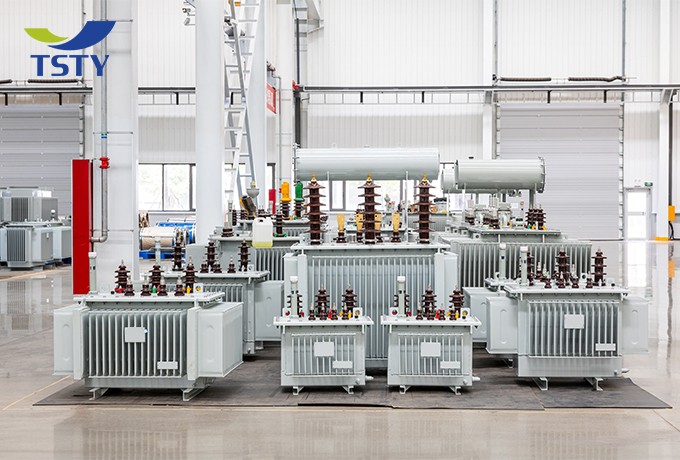

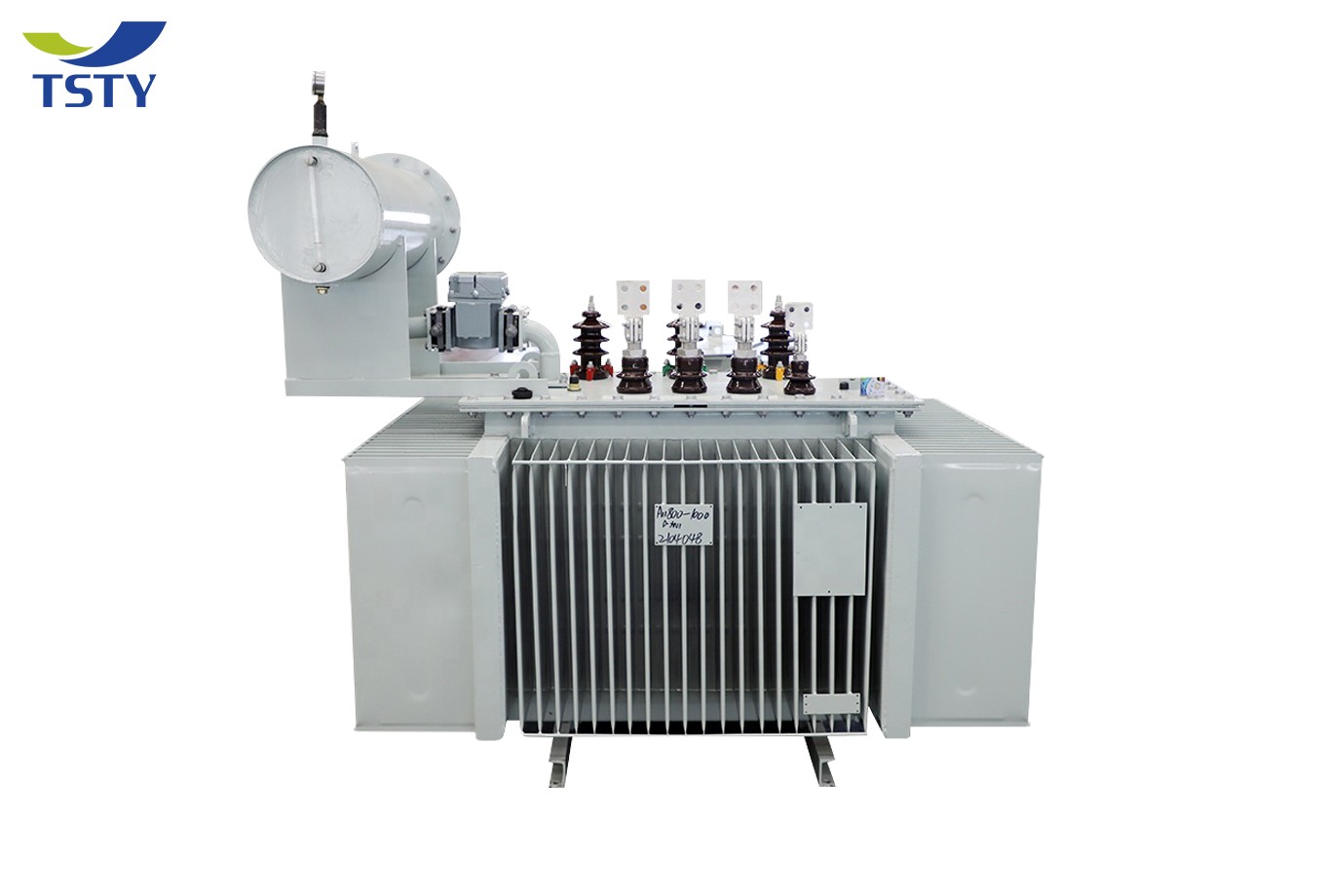

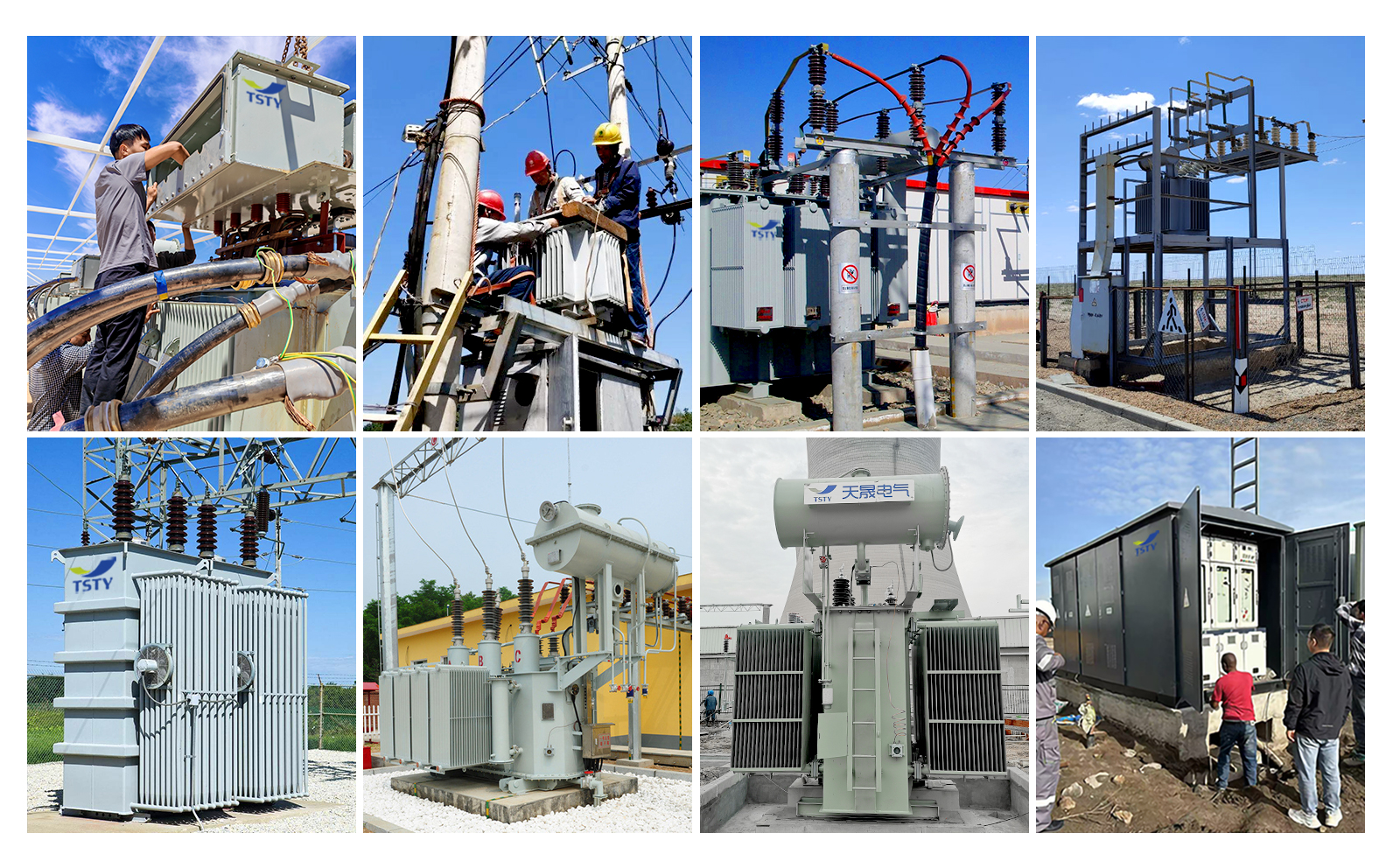

33KV oil-immersed distribution transformer is an important equipment in the power distribution network and the power supply and distribution system of industrial and mining enterprises. The transformer designed by TSTY adopts a leak-proof design, with the characteristics of low loss, low noise and high reliability. Our transformers meet the national standards of many countries such as IEC and GB. Our company's oil-immersed transformer series products have become the leader in the power supply field with its excellent performance, safety, stability and durability. The product line covers various models from S9 to S22, with an applicable voltage range from 6kv to 35kv and a capacity from 15kva to 31500kva, meeting the needs of various scenarios.
33KV Transformer Parameters|
35KV Oil Immersed Transformer Main Technical Parameters |
||||||||||||
| Rated Capacity KVA | Voltage Combination | Connection Symbol | Off-load Loss(KW) | On-load Loss(KW) (75℃） | Impendan ce (%) | Weight(KG) | Dimensions(mm) | |||||
| High Voltage (KV) | Tapping Range (%) | Low Voltage(KV) | Oil | Total | Length | Width | Height | |||||
| 50 |
25 30 33 35 |
±5 ±2x2.5 |
0.23 0.38 0.4 0.44 0.48 0.6 |
Dyn11 Yyn0 |
0.166 | 1.285 | 6.44% | 165 | 535 | 1120 | 670 | 1235 |
| 80 | 0.209 | 1.734 | 6.66% | 195 | 670 | 1120 | 700 | 1270 | ||||
| 100 | 0.244 | 2.138 | 6.39% | 210 | 745 | 1120 | 720 | 1285 | ||||
| 125 | 0.286 | 2.552 | 6.27% | 215 | 790 | 1160 | 715 | 1330 | ||||
| 160 | 0.3 | 3.027 | 6.40% | 245 | 970 | 1245 | 785 | 1365 | ||||
| 200 | 0.361 | 3.649 | 6.28% | 360 | 1050 | 1245 | 795 | 1380 | ||||
| 250 | 0.424 | 4.294 | 6.49% | 285 | 1175 | 1335 | 880 | 1395 | ||||
| 315 | 0.51 | 5.2 | 6.31% | 310 | 1305 | 1380 | 920 | 1420 | ||||
| 400 | 0.613 | 6.171 | 6.31% | 355 | 1540 | 1510 | 1010 | 1455 | ||||
| 500 | 0.716 | 7.452 | 6.51% | 390 | 1760 | 1120 | 1105 | 1502 | ||||
| 630 | 0.897 | 8 65 | 6.60% | 430 | 2000 | 1120 | 1210 | 1527 | ||||
| 800 | 1042 | 10.181 | 6.24% | 525 | 2545 | 2080 | 1215 | 1770 | ||||
| 1000 | 1.22 | 12.375 | 6.30% | 600 | 2885 | 2125 | 1270 | 1850 | ||||
| 1250 | 1.457 | 15.119 | 6.40% | 690 | 3275 | 2150 | 1300 | 1950 | ||||
| 1600 | 1.796 | 18.337 | 6.53% | 840 | 3955 | 2310 | 1355 | 2070 | ||||
| 2000 | 2.105 | 21.122 | 6.47% | 1010 | 4775 | 2390 | 1395 | 2170 | ||||
| 2500 | 2.514 | 25.296 | 6.29% | 1145 | 5550 | 2515 | 1435 | 2300 | ||||
| S20 Oil-immersed Three-phase Double-winding No-load Voltage Regulation Power Transformers | ||||||
|
Rated Capacity kVA |
Voltage Combination |
No-Load Loss kW |
Load Loss(75℃) kW |
Short-circuit Impedance % |
||
| High Voltage（kV) | Tapping Range | Low Voltage (kV) | ||||
| 3150 |
33 35 38.5 |
±5% ±2×2.5% |
0.4 | 2.0 | 20.7 | 7 |
| 4000 | 2.3 | 24.6 | ||||
| 5000 | 2.8 | 28.2 | ||||
| 6300 | 3.4 | 31.5 | 8 | |||
| 8000 | 4.7 | 34.6 | ||||
| 10000 | 5.7 | 40.8 | ||||
| 12500 | 6.5 | 48.4 | ||||
| 16000 | 7.9 | 59.2 | ||||
| 20000 | 9.4 | 71.6 | ||||
| 25000 | 11.1 | 84.6 | 10 | |||
| 31500 | 13.1 | 100.8 | ||||
| S22 Oil-immersed Three-phase Double-winding No-load Voltage Regulation Power Transformers | ||||||
|
Rated Capacity kVA |
Voltage Combination |
No-Load Loss kW |
Load Loss(75℃) kW |
Short-circuit Impedance % |
||
| High Voltage（kV) | Tapping Range | Low Voltage (kV) | ||||
| 3150 |
33 35 38.5 |
±5% ±2×2.5% |
0.4 | 1.7 | 20.7 | 7 |
| 4000 | 2.0 | 24.6 | ||||
| 5000 | 2.4 | 28.2 | ||||
| 6300 | 2.9 | 31.5 | 8 | |||
| 8000 | 4.0 | 34.6 | ||||
| 10000 | 4.8 | 40.8 | ||||
| 12500 | 5.5 | 48.4 | ||||
| 16000 | 6.7 | 59.2 | ||||
| 20000 | 7.9 | 71.6 | ||||
| 25000 | 9.4 | 84.6 | 10 | |||
| 31500 | 11.1 | 100.8 | ||||
