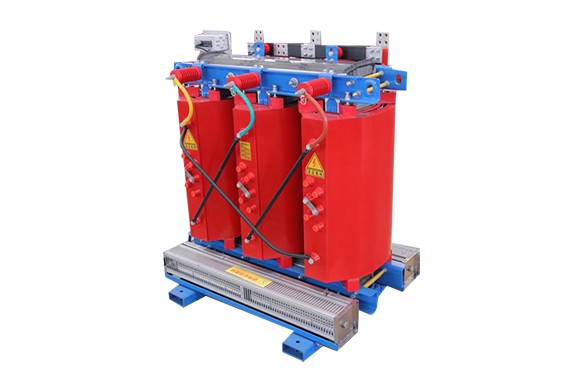

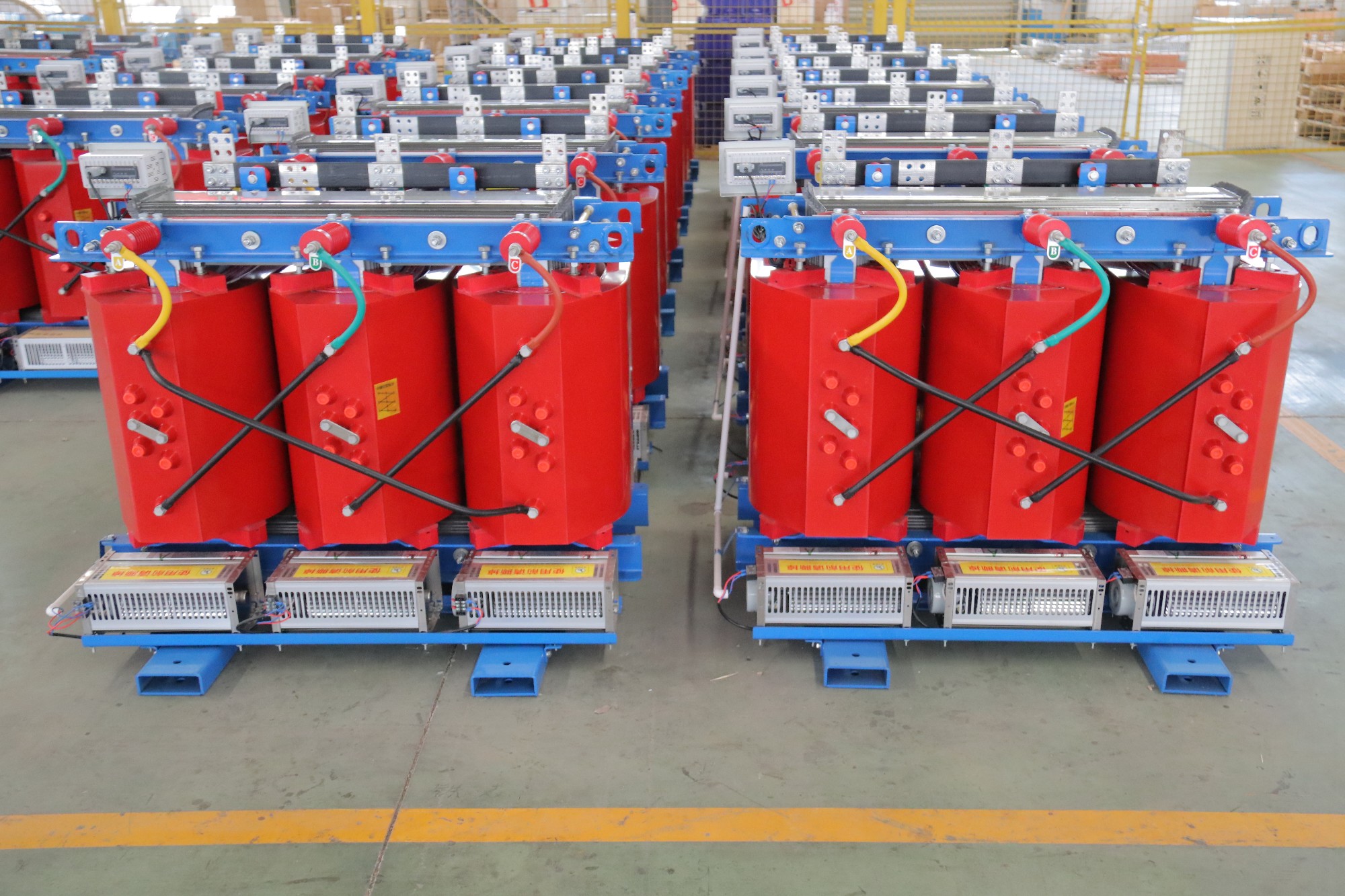

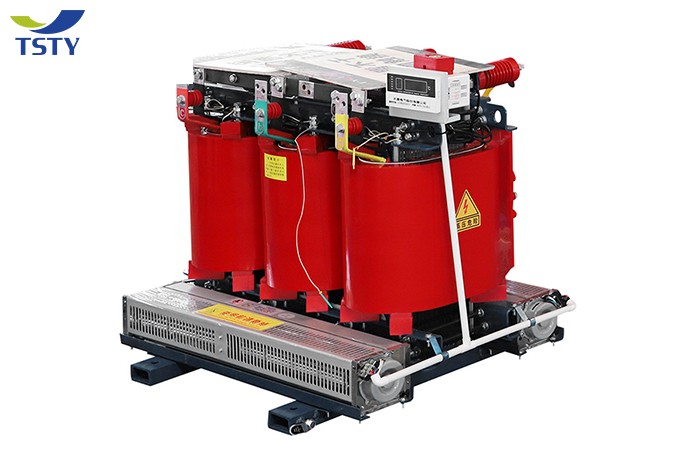

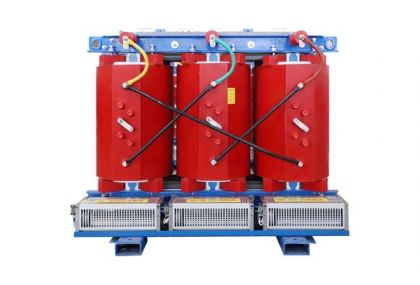

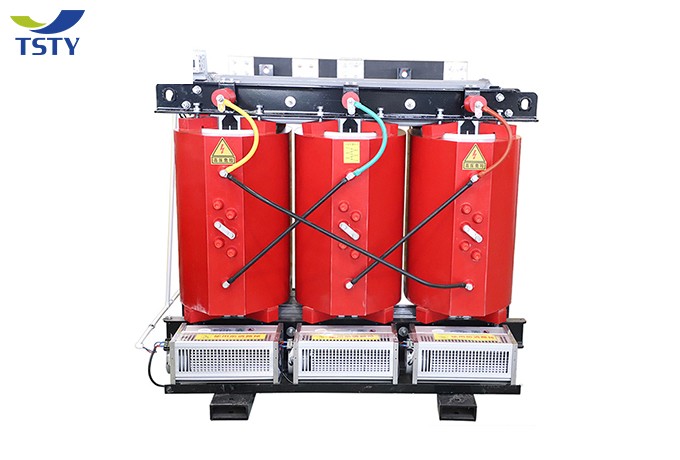

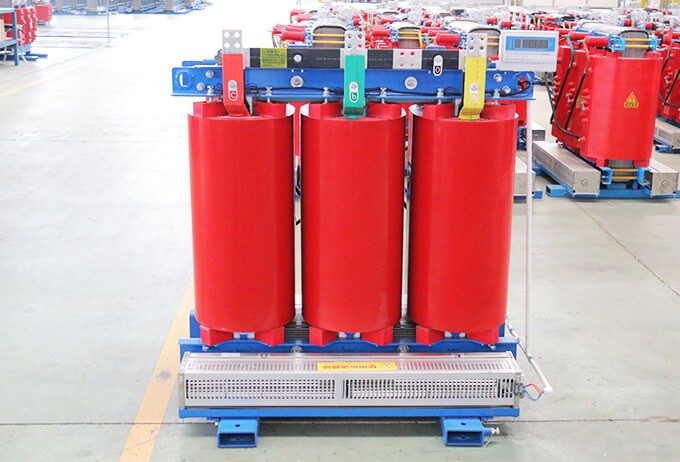

20KV Cast Resin Dry Type Power/Distribution Transformer

Brand Name:TSTY

Model Number: SCB11、SCB13、SCB14

Phase: Three

Service Voltage: 6.6-35kV

Rated Capacity: 30-5000kVA

20kv is a medium voltage distribution voltage level between the traditional 10kv and 35kv. 20kv dry-type transformers are suitable for users with large power consumption, such as large factories, commercial centers, etc. Dry-type transformers are cast with insulating resin, with high safety, maintenance-free, environmental protection and other characteristics, and are widely used in places with high safety requirements.

TSTY Electric Co., Ltd.

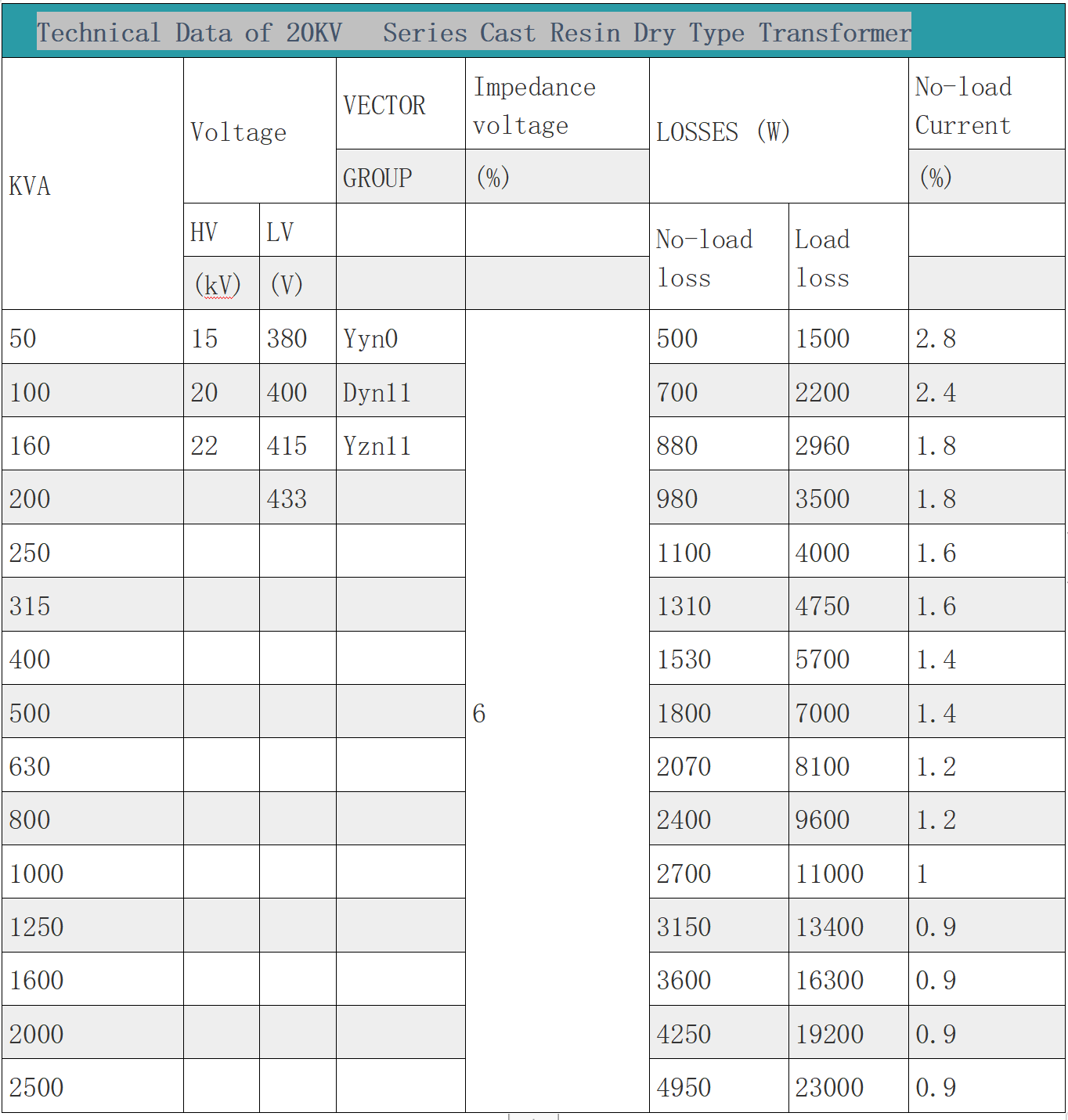

20kv Transformer Parameter



20KV Series Cast Resin Dry Type Transformer

KVA

Voltage

VECTOR

Impedance voltage

Losses(w)

No-load Current

GROUP

(%)

(%)

HV

LV





No-load loss

Load loss



KV

V







50

15

380

Yyn0













6

500

1500

2.8

100

20

400

Dyn11

700

2200

2.4

160

22

415

Yzn11

800

2960

1.8

200



433



980

3500

1.8

250







1100

4000

1.6

315







1310

4750

1.6

400







1530

5700

1.4

500







1800

7000

1.4

630







2070

8100

1.2

800







2400

9600

1.2

1000







2700

11000

1

1250







3150

13400

0.9

1600







3600

16300

0.9

2000







4250

19200

0.9

2500







4950

23000

0.9

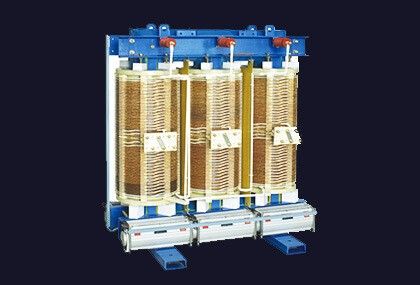

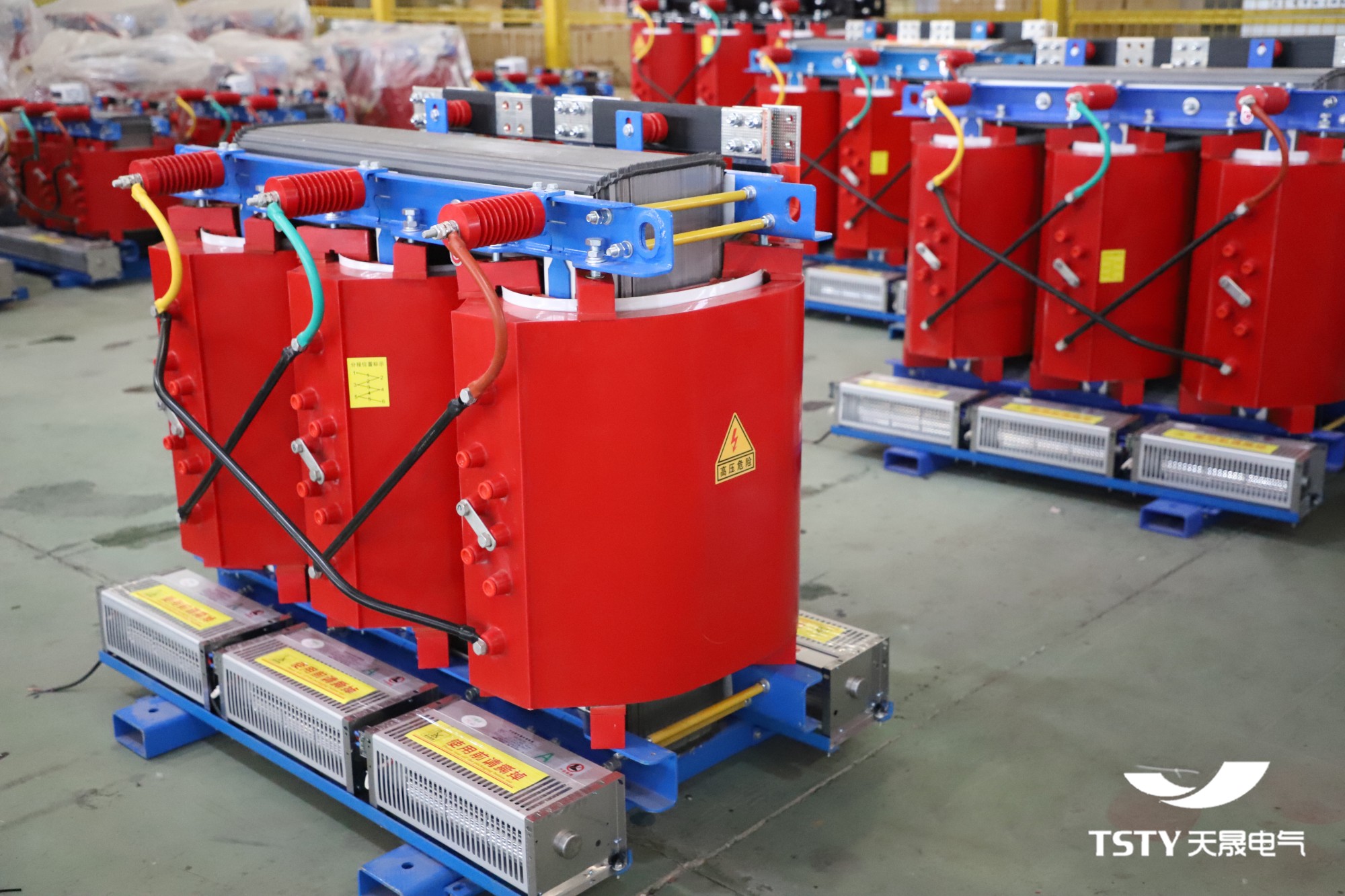

Product Design Features



1. The most advanced epoxy resin casting process in China is adopted, which has good insulation performance;

2. The new cold-pressed oriented silicon steel sheet is used as the iron core, and the seven-step 45-degree full-bevel joint has beautiful craftsmanship, and the no-load loss is reduced by 3-5% percentage points compared with the three-step;

3. In the traditional dry-type transformer production, the insulating paint of the iron core is mostly black or black, while TSTY uses transparent insulating paint, which can intuitively see the process and materials.

4. The core bending clamp is designed independently, with a simple structure, convenient manufacturing and installation, and greatly reduced operating noise.

TSTY Electric Co., Ltd.

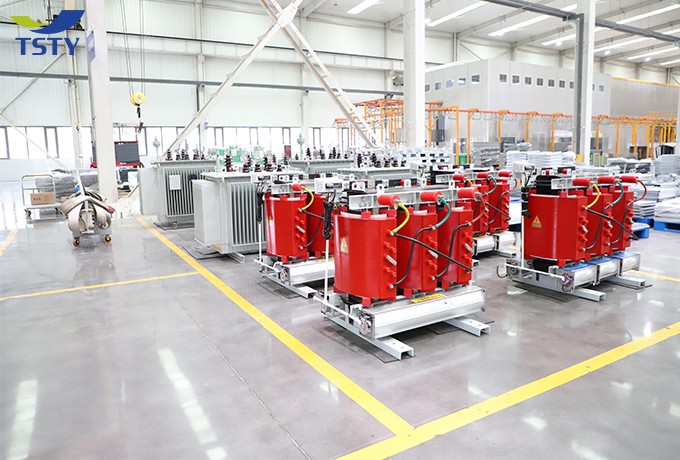

Dry Transformer Features



1. High safety: It is cast with epoxy resin and has excellent fireproof performance. There is no risk of oil leakage, and the waste disposal is relatively simple and environmentally friendly.

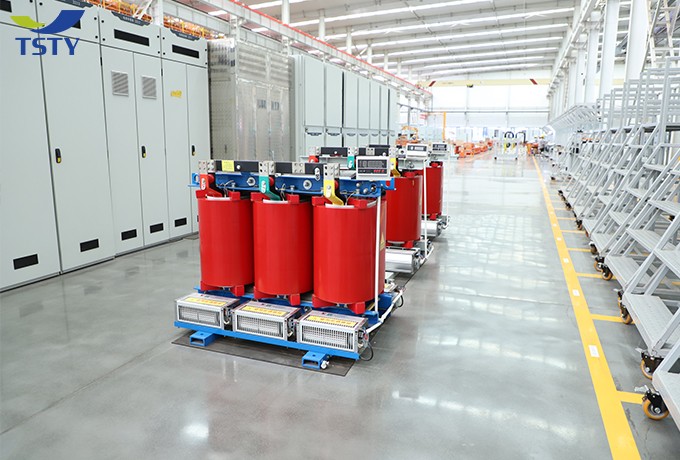

2. Flexible installation: It can be installed directly inside the building, close to the power load center, greatly shortening the low-voltage power supply distance. It is light in weight, has small basic weighing requirements, and has no directional restrictions for installation.

3. Maintenance-free: There is no need to regularly check the oil quality and oil level, and there is no need to replace the transformer oil and seals.

4. Good heat dissipation and overload capacity. The winding has a large thermal capacity and strong short-term overload capacity. The forced air cooling design can significantly increase the output capacity in a short time.
