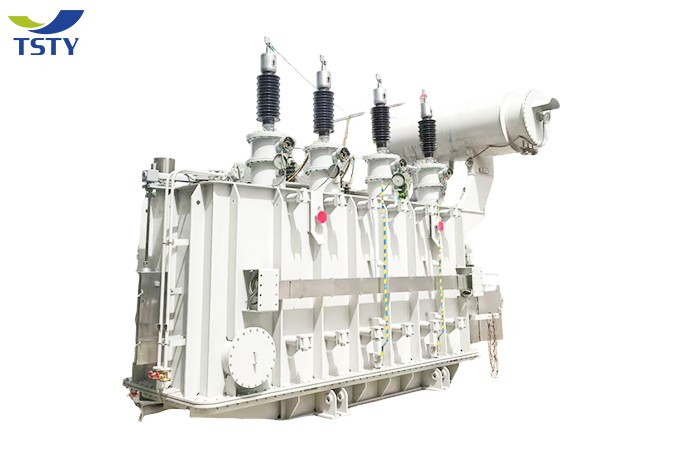

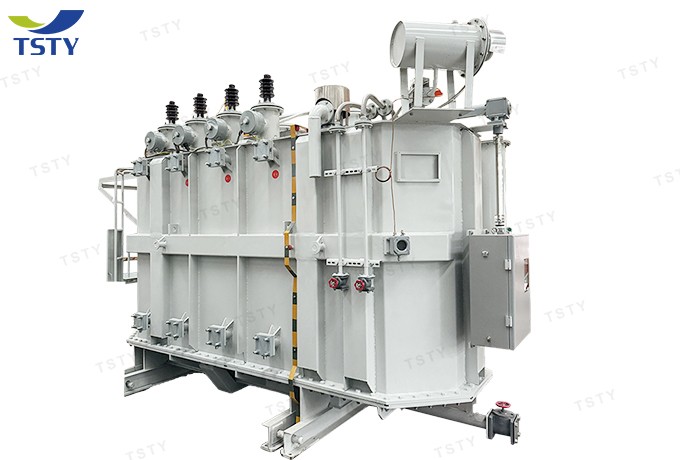

Our company TSTY produces 110kV oil energy-saving transformers. This series features low loss, low noise, low temperature rise, high reliability, no need for suspension cores and zero leakage. All performance indicators reach the advanced level of similar domestic products. They can significantly reduce network losses and operating costs, providing significant economic benefits. They are suitable for power plants, substations, wind and photovoltaic power plants operating on renewable energy sources, large factories, mines and petrochemical plants.

Characteristics and specifications

110kV oil energy-saving transformers are available with both on-load and off-load tap-change. They are suitable for three-phase power systems with a frequency of 50Hz and a voltage of 110kV and below. Our company adopts advanced domestic and foreign technologies, applies new materials and optimizes the design to improve product performance. These transformers greatly improve electrical and mechanical strength as well as heat dissipation.

TSTY Electric Co., Ltd.

110kv Paremeters

S18-6300~180000/110kV Oil-Immersed Transformer
Rated Capacity(kVA)	Voltage Combination			Vector Group	No-Load Loss (kW)	Load Loss (kW) (75℃)	No-Load Current (%)	Impedance (%)
Rated Capacity(kVA)	High Voltage (kV)	Tapping Range	Low Voltage (kV)	Vector Group	No-Load Loss (kW)	Load Loss (kW) (75℃)	No-Load Current (%)	Impedance (%)
6300	110 115 121	±2x2.5%	6.3 6.6 10.5	YNd11	5.90	33	0.62	10.5
8000					7.10	40	0.62
10000					8.40	48	0.58
12500					9.90	56	0.58
16000					12.00	69	0.54
20000					14.10	84	0.54
25000					16.60	99	0.50
31500					19.70	117	0.48
40000					23.50	141	0.45
50000					28.20	166	0.42
63000					33.30	198	0.38
75000			13.8 15.75 18 21		37.80	224	0.33	12~14
90000					43.50	258	0.30
120000					54.20	320	0.27
150000					64.10	379	0.24
180000					72.00	434	0.20

S20-6300~180000/110kV Oil-Immersed Transformer
Rated Capacity(kVA)	Voltage Combination			Vector Group	No-Load Loss (kW)	Load Loss (kW) (75℃)	No-Load Current (%)	Impedance (%)
Rated Capacity(kVA)	High Voltage (kV)	Tapping Range	Low Voltage (kV)	Vector Group	No-Load Loss (kW)	Load Loss (kW) (75℃)	No-Load Current (%)	Impedance (%)
6300	110 115 121	±2x2.5%	6.3 6.6 10.5	YNd11	4.80	32	0.62	10.5
8000					5.80	38	0.62
10000					6.80	45	0.58
12500					8.10	53	0.58
16000					9.80	65.7	0.54
20000					11.40	79	0.54
25000					13.50	94	0.50
31500					16.00	111	0.48
40000					19.10	133	0.45
50000					22.90	158	0.42
63000					27.00	187	0.38
75000			13.8 15.75 18 21		30.70	212	0.33	12~14
90000					35.40	245	0.30
120000					44.10	303	0.27
150000					52.10	359	0.24
180000					58.50	411	0.20

Design Advantages

High-Quality Raw Materials

1. Uses silicon steel raw materials from top-tier state-owned enterprises like Wuhan Iron and Steel and Baosteel.

2.Control material quality from the source, reducing defects.

Fully Automated and Unmanned Process

1.Intelligent cross-cutting and longitudinal shearing, RGV rails, AGV/unmanned forklifts, dual intelligent automated warehouses, automatic stacking machines, automatic inspection and conveying, etc.

2.educes human error, bumps, and material damage.

High Precision and Consistency

1. Smooth, burr-free cuts; perfectly fitted laminations.

2.Unified control of lamination position, pressure, and gap.

3.Constant tension winding; automatic computer counting eliminates human error.

Full Traceability

1. Each iron core has an independent traceability code.

2.Each SOP corresponds to a unique QR code.

3.Raw material batches, process records, and responsible persons are all traceable; problems can be located in seconds.

National-Level Testing and Export Certification

1. CNAS National-Level Testing Center; one of the ≤5 institutions nationwide with relevant transformer testing capabilities.

2.Never leaving the factory if substandard.

3.Compliant with IEC, GB/T, IEEE, and ANSI standards; meets UL, CE, GOST, and other market requirements.

Global Environmental Adaptability

1. Five-fold anti-corrosion upgrades: C5-grade electrostatic powder coating, 150μm thickness, salt spray resistance >1000h.

2.Suitable for harsh environments such as coastal areas, high-altitude regions, extreme cold, and high humidity.

3.Customization available, including FR3 vegetable oil and vacuum-sealed anti-corrosion packaging.

TSTY Production Ability

TSTY covers a total area of 250,000 square meters, with 15 production lines, 3 intelligent production lines, more than 220 sets of intelligent equipment and testing equipment. We have a strong production capacity, with a daily output of 50 oil-immersed transformers, which can meet the needs of power transformers of various sizes.

TSTY Electric Co., Ltd.

Project Case

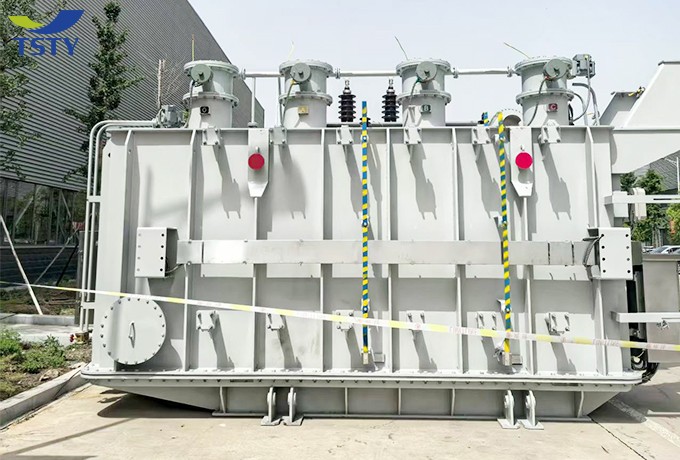

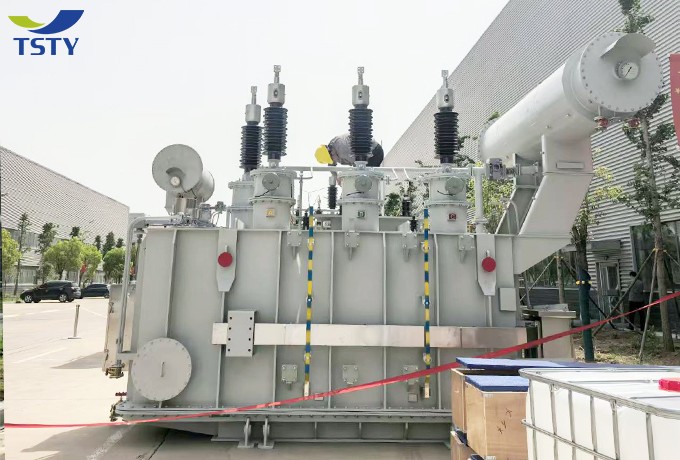

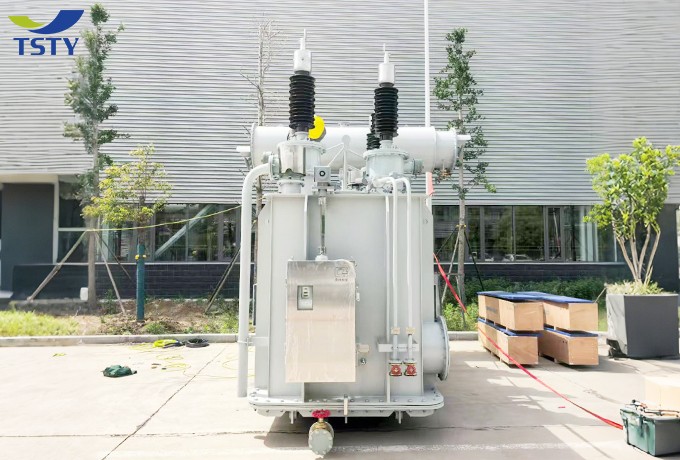

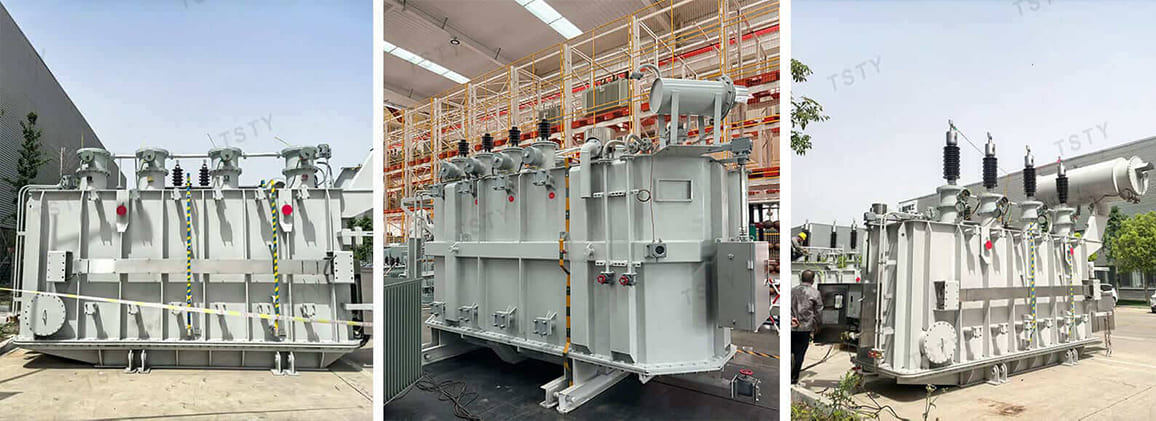

The following images show the 110kV power transformer project we installed.In addition, TSTY has exported transformers to more than 80 countries and regions, including the Philippines, Colombia, Ethiopia, Russia, Zambia, and Chile.
